BMW 3 Series E46 Airbag Control Unit Repair

What is a BMW 3 Series E46 airbag control unit?

The BMW 3 Series E46 airbag control unit is the central safety unit that activates occupant restraint systems in the event of an accident. It monitors sensors, stores crash data, and ensures the proper functioning of all airbag modules in the vehicle. Repairing this module is crucial to restoring driving safety, especially if it is defective.

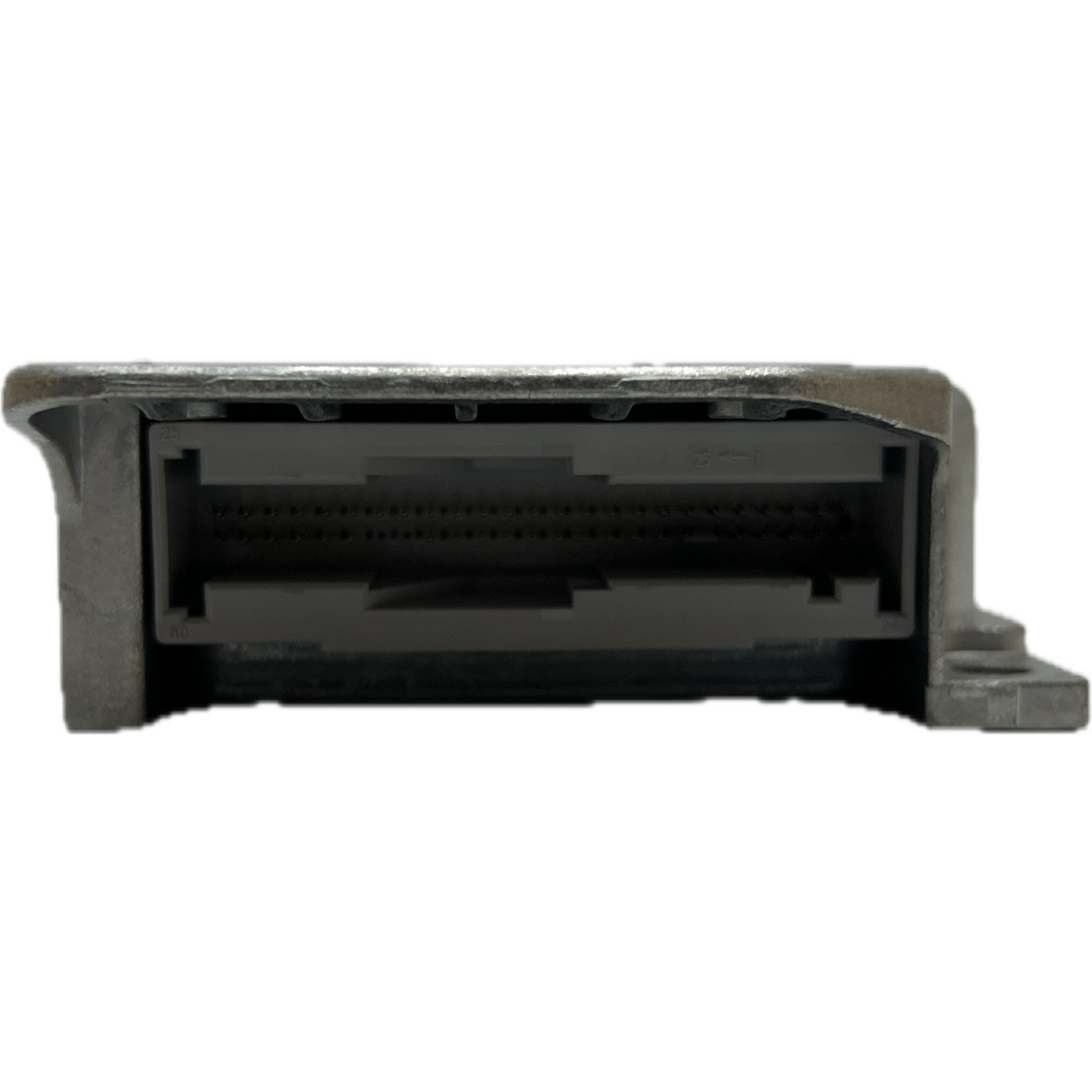

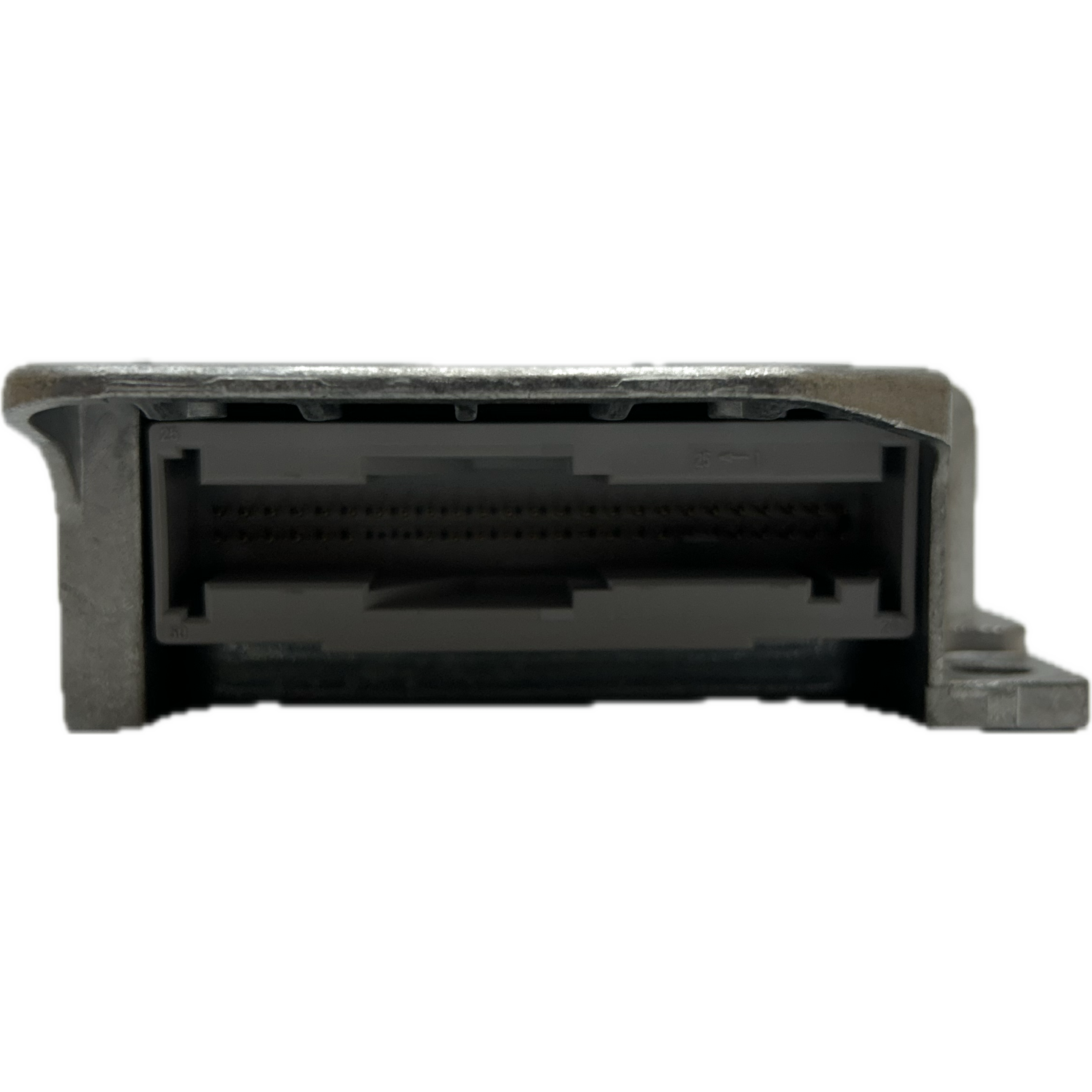

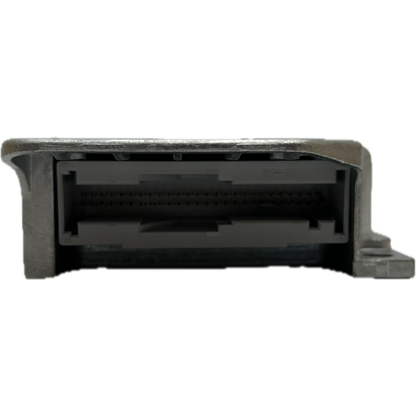

This safety-relevant component is responsible for the precise control of airbag deployment. It is installed in the vehicle, usually in the center console, and connected via multi-pin connectors.

The unit receives signals from acceleration sensors and processes them to activate the passive safety systems. Proper diagnosis is essential in the event of a failure.

Why is the BMW 3 Series E46 airbag control unit defective?

A BMW 3 Series E46 airbag control unit may be defective because it is storing crash data after an accident, has internal errors, or is experiencing communication disruptions. Such defects are indicated by an illuminated airbag warning light or a lack of diagnostic capability, requiring professional repair.

After a collision, the control unit stores indelible crash data that prevents further operation. In this case, deleting the data and resetting the module is necessary to make it usable again.

Power supply errors or internal circuit problems can also cause the system to fail. In such cases, a check at a specialized workshop is urgently recommended so that the system can be repaired.

Common error codes for BMW 3 Series E46 airbag control unit repair

When repairing the BMW 3 Series E46 airbag control unit, specific error codes are crucial for precisely identifying the cause of a failure. These codes directly indicate internal control unit problems or communication disruptions, enabling a precise diagnosis and paving the way for professional repair.

• 0000F0 → Internal control unit error → Defect in the airbag ECU (Electronic Control Unit).
• 240 → Internal control unit error / communication error → Malfunction in the control unit or in the data bus.
• U1726 → No communication with airbag control unit → Interruption of the data connection to the module.
• B1000 → Control unit communication error → General problem with ECU communication.
• Supply voltage error → Power supply error → Insufficient or unstable power supply to the control unit.
• Error code cannot be deleted → Stored crash data → After an accident, the crash data is stored in the control unit and must be deleted.

What part numbers are available for the BMW 3 Series E46 airbag control unit repair?

For BMW 3 Series E46 airbag control unit repairs, specific OEM part numbers are crucial to ensure correct compatibility and functionality. These include BMW-specific numbers as well as correlating Bosch part numbers, allowing for precise matching for a successful repair or replacement.

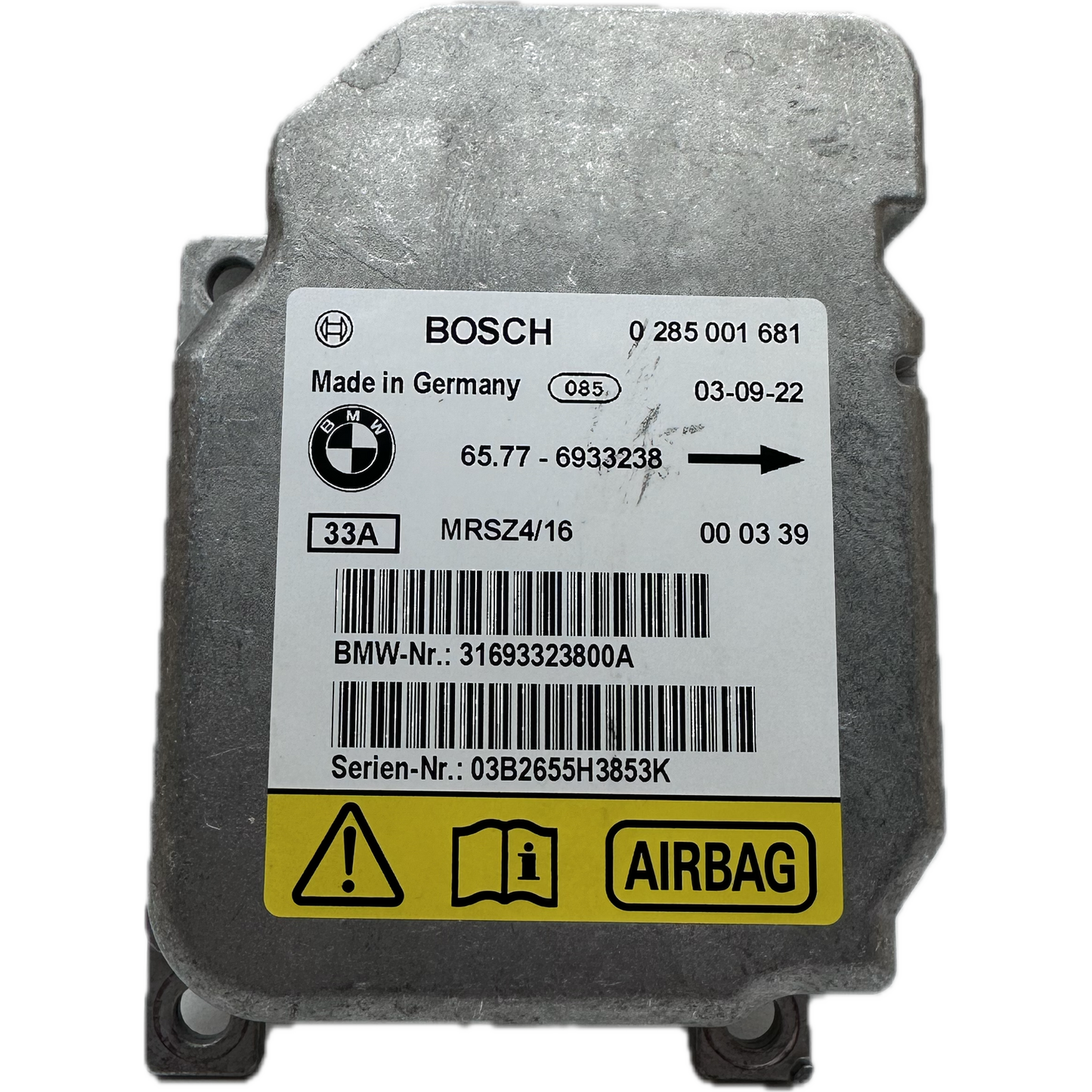

The most common original BMW part numbers include 65 77 6 905 491, 65 77 6 912 755 and 65 77 6 933 238. These are specific to the E46 model and its years of manufacture.

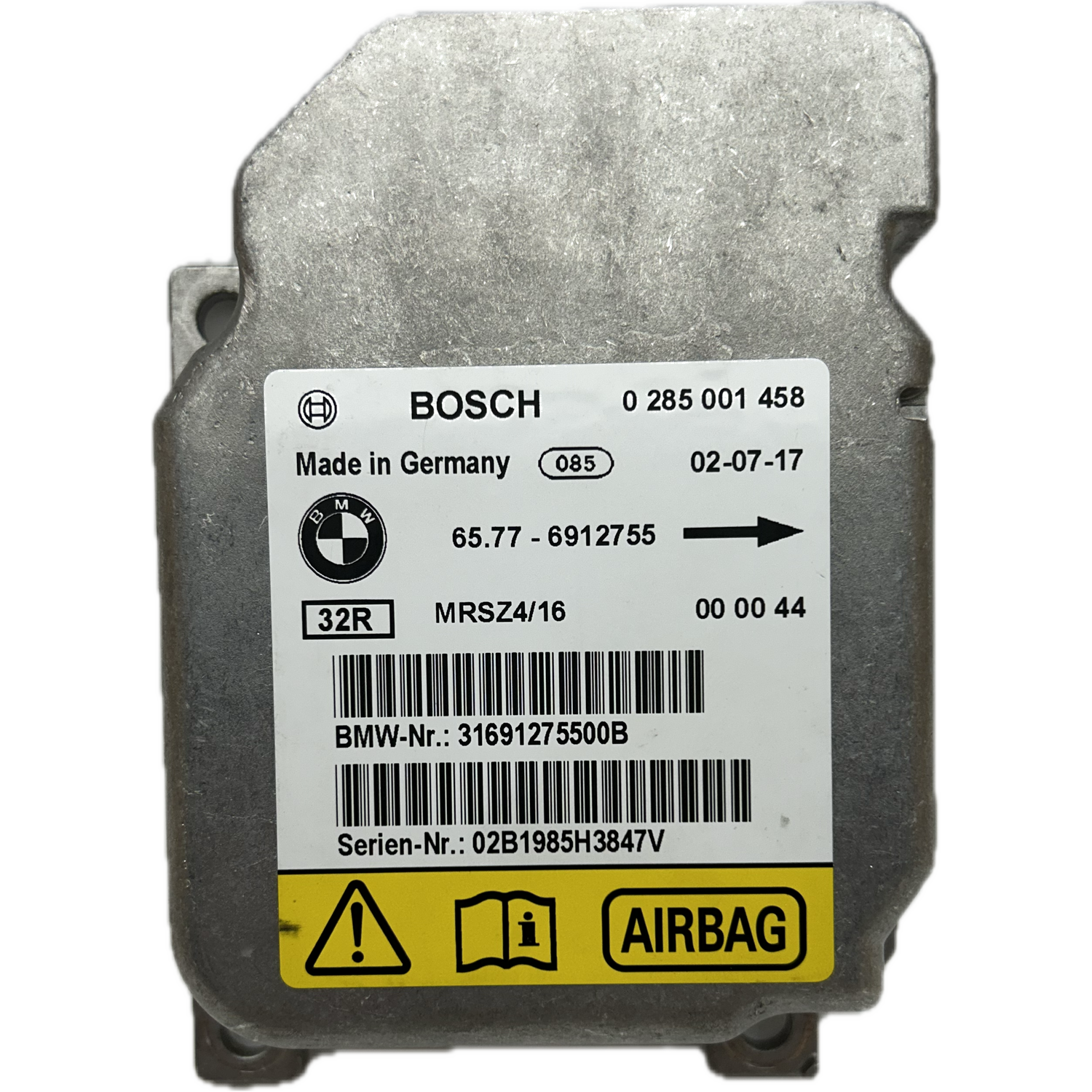

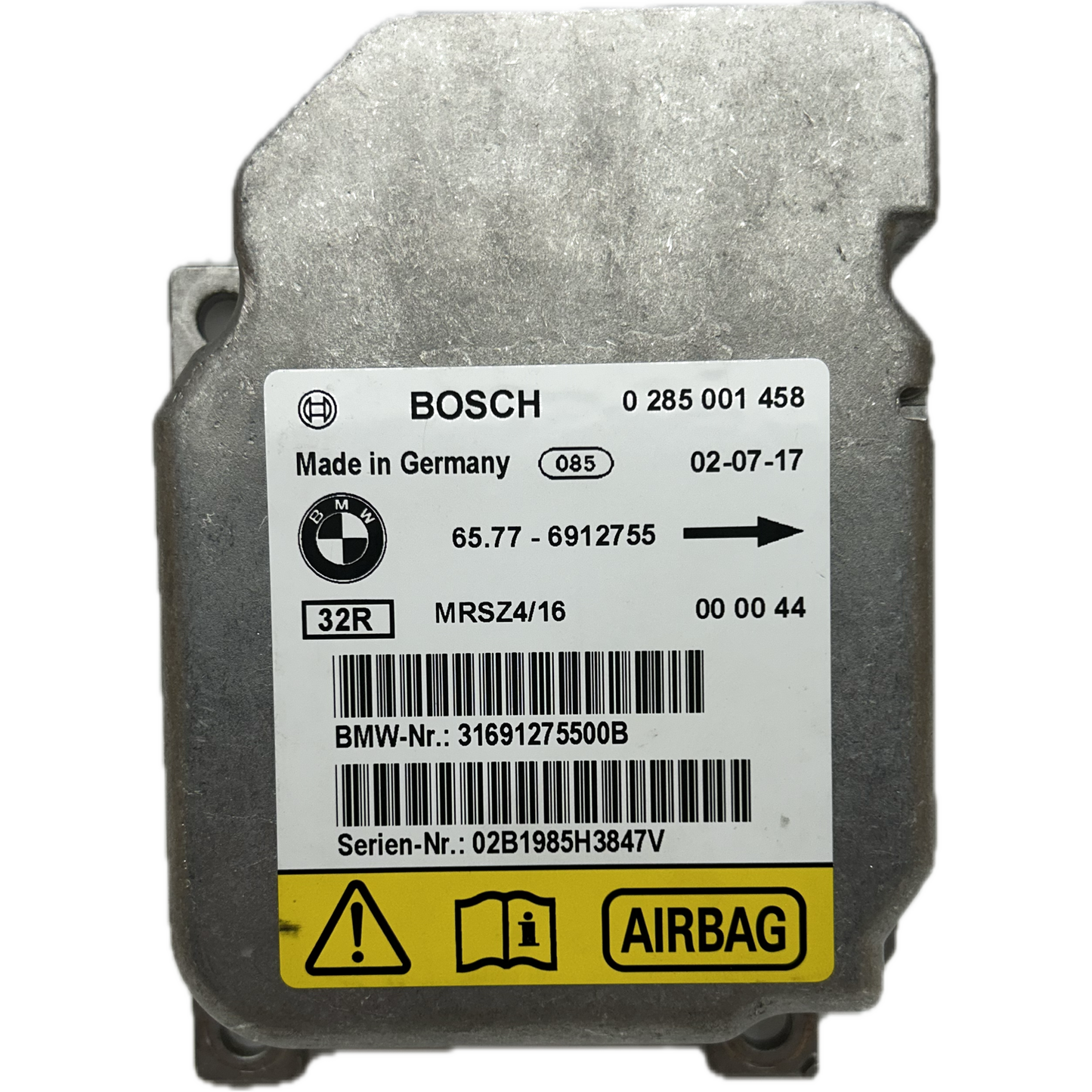

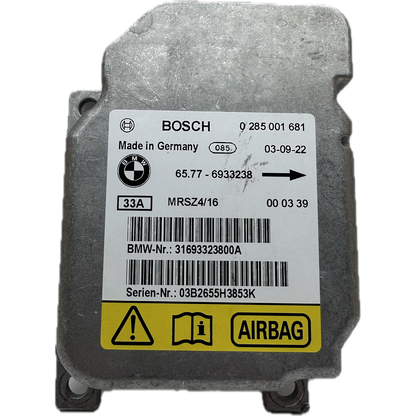

Correlating Bosch OEM part numbers, which are often associated with the BMW numbers, are 0285001368, 0285001458 and 0285001681. These guarantee the compatibility of the control unit.

Repairing or replacing an airbag control unit always requires a thorough check of the part number. This ensures that the replaced or repaired module is a perfect fit for the vehicle and will not cause any further errors.
